Discover our high-quality rail-type CubeSat structures, meticulously designed and manufactured to meet the latest CubeSat Design Specification (CDS) rev 14.1 standards. Our structures feature an innovative two-part design, consisting of a robust outer frame and versatile internal frames. The internal frames are crafted to securely stack PCBs, allowing for easy attachment and detachment during satellite assembly. The standard PCB frame size is 1U, but we offer customizable internal frames in various sizes, orientations (horizontal or vertical), and quantities to suit your specific needs.
Additionally, our structures can be tailored with different materials, coatings, or detachable side panels. Contact us to explore your customization options and enhance your CubeSat mission with our reliable and flexible structural solutions.

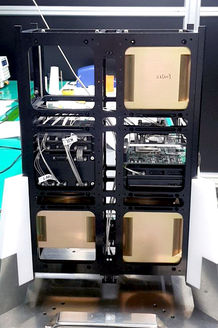

CubeSat Structures
▪ Modular design for flexibility and easy integration
▪ Implemented kill switches
▪ Compatible with all types of subsystems
▪ Customizable stack size and orientation
▪ Flight proven
Specifications
Available sizes
1U, 3U(STD or XL), 6U(STD or XL)
Dimensions
1U: 100 x 100 x 113.5 mm
3U: 100 x 100 x 340.5(366 XL) mm
6U: 100 x 226.3 x 340.5(366 XL) mm
1U: 130 ±10%
3U: 400g ±10%
6U: 900g ±10%
Mass
(without PCB frames)
Material
Aluminum 7075 alloy
6061, 5052 available
PCB layout
96mm x 96mm
Coatings
Alloy - default
Chromate, black anodizing, black painting available
Kill switch
4 kill switches (2 for redundancy)
Customizations
Custom size PCB frames, additional kill switches, Shear panels
